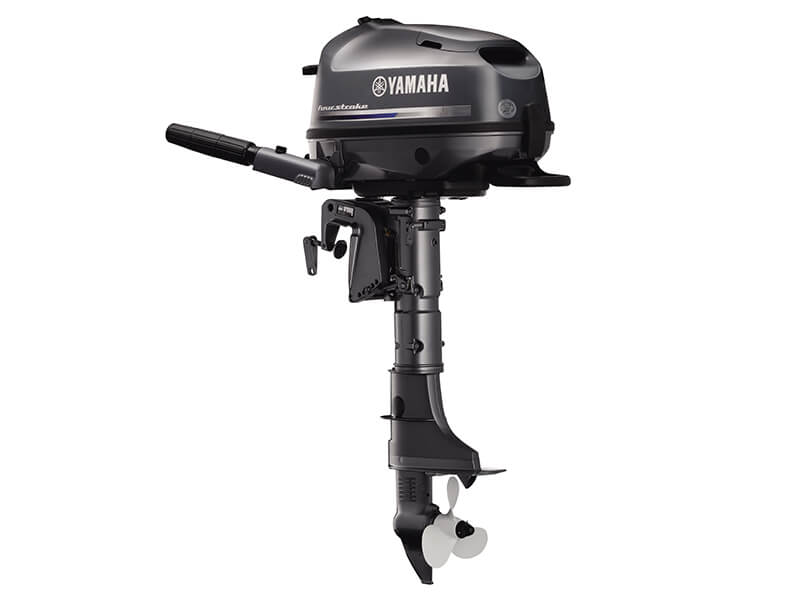

Yamaha F5SMHA

Lightweight, compact and economical, Yamaha’s single-cylinder F5 portable has been designed to be ultra-easy to use and transport. Featuring a specially developed four- stroke, Overhead Valve (OHV) design, this engine delivers excellent fuel efficiency and smooth running. Attention to detail is what makes Yamaha small engines great - delivering a user experience that stands head and shoulders above anything else.

$2,235.00
* Enquire Now

  • Make: Yamaha
  • Year: 2025
  • SKU/Model Number: Yamaha F5SMHA Four Stoke Outboard
  • Name: Yamaha F5SMHA
  • Stock Number: f5smha2235


Engine Dimensions

Engine Type 4-Stroke, OHV, 1-cylinder
Bore x Stroke (mm) 62 x 46
Fuel Tank Capacity (l) 1.1
Displacement (cc) 139.0
Recommended Maximum RPM4500-5500
Fuel Management Carb
Ignition CDI
Lubrication System Wet sump
Alternator Output 12V-6Amp with Rectifier Regulator (optional)
Gear Ratio 2.08:1
Starter System Manual Choke
Operation Method Tiller Handle
Trim and Tilt Method Manual Tilt

Weight 27kg

Instore Purchase only.
